CR2000-005B-12SF Pipe Welding Preheat 5KVA 1-160uH Inductance Range
Product Description:
Induction Preheating Welding is a welding technique used to
increase the material strength of post weld heat treatment, using
an induction power source to generate eddy currents in the material
surface. The induction power source is capable of input power up to
5KVA, and has an input current range of 20.8-22.7A. It can be used
on various materials such as Carbon Steel, Stainless Steel, Copper
and Aluminum. Additionally, it is equipped with 6 thermocouples for
accurate temperature control during the preheating process. The
inductance range can be adjusted from 1-160uH, and it can be used
with automatic pipe welding machines for fast and efficient
welding.
Features:
- Product Name: Induction Preheating Welding
- Heating temperature: Can Be High As 788℃
- Input Current: 20.8-22.7A
- Weight: 22Kg
- Output Power: 4.5KW(duty Cycle 100%)
- Input Voltage: 1-phase 220-240V
- Suitable for oil and gas pipeline construction, Onshore Offshore
pipeline, using automatic pipe welding machine
Technical Parameters:
| Parameters | Details |
|---|
| Temperature Control | Digital Display |
| Output Frequency | 5-60KHz |
| Product Model | CR2000-005B-12SF |
| Material | Carbon Steel/Stainless Steel/Copper/Aluminum |
| Inductance Range | 1-160uH |
| Input Power | 5KVA |
| Input Current | 20.8-22.7A |
| Input Voltage | 1-phase 220-240V |
| Weight | 22Kg |
| Output Power | 4.5KW(duty Cycle 100%) |
| Max Output Power | 40kw |
| Application | Using Automatic Pipe Welding Machine, Post Weld Heat Treatment |
Applications:

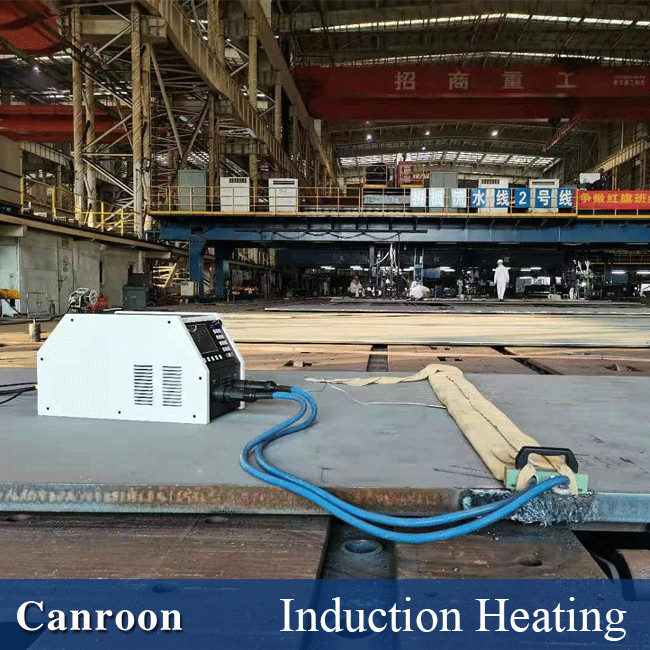

Canroon CR2000 Induction Preheating Welding: Onshore Offshore
Pipeline Pipe Welding Preheat
The Canroon CR2000 induction preheating welding machine is an ideal
solution for onshore and offshore pipeline projects. This product
model, CR2000-005B-12SF, is designed with a maximum output power of
4.5KW (100% duty cycle) and can reach a maximum temperature of
788℃. The digital display temperature control and adjustable output
frequency (5-60KHz) provide precise control for the preheating
process. This machine is perfect for onshore and offshore pipeline
welding preheat and can be used in a variety of scenarios where
40KW of heat is needed.
Customization:
Customized Service for Canroon CR2000 Induction Preheating Welding
Canroon CR2000 Induction Preheating Welding offers the best quality
in product performance and service. It features a 40kw output and
uses an automatic pipe welding machine for digital control. It has
a maximum input power of 5KVA, 6 thermocouples, a temperature
control with digital display, and a total weight of 22Kg.
Packing and Shipping:
Packaging and Shipping for Induction Preheating Welding:
- The product is packaged in a cardboard box with foam inserts for
protection.
- It will be shipped with a tracked courier service.
- Delivery is normally within 5-7 working days.
FAQ:
- Q: What is the brand name of Induction Preheating Welding?
- A: The brand name of Induction Preheating Welding is Canroon.
- Q: What is the model number of Induction Preheating Welding?
- A: The model number of Induction Preheating Welding is CR2000.
- Q: What is the place of origin of Induction Preheating Welding?
- A: The place of origin of Induction Preheating Welding is Shenzhen,
China.
- Q: What are the advantages of Induction Preheating Welding?
- A: The advantages of Induction Preheating Welding are faster
welding speed, less thermal distortion, higher welding efficiency
and better welding quality.
- Q: What type of materials can be used in Induction Preheating
Welding?
- A: Induction Preheating Welding is applicable for welding materials
such as aluminum alloy, copper, stainless steel and other alloys.
