Solar water pump inverter PV support dc to ac solar power
irrigation mppt

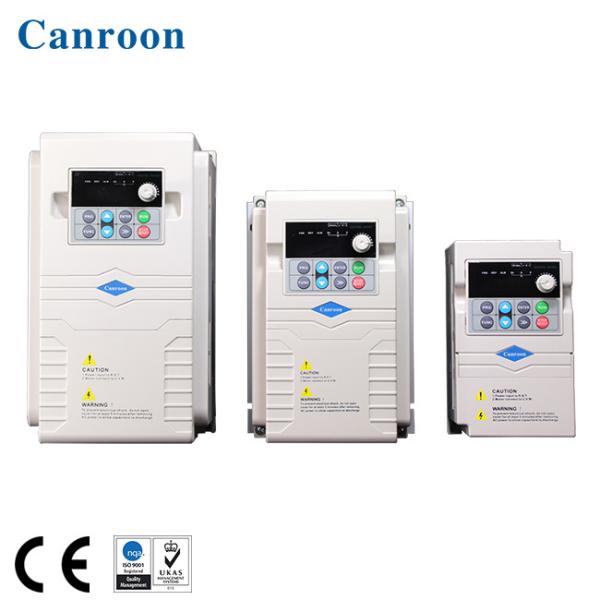

Solar pump system consists of 3 parts: solar cell array, solar
inverter and pump.CV900S series solar pump inverter are specially designed
and manufactured for this system by Canroon, using electric energy generated by solar panel to power water pump, and deliver water from
underground or river to applications like farm irrigation, desert
greening, garden fountain, etc.
MPPT
Bulid-in MPPT function
High effciency
Optimized frequency output
Flexible system design
Minimized solar panels solution
Off-grid power storage
GPRS based wireless monitoring &controlling
Automatic control
Start in the morning automatically
Stop in the afternoon automatically
Dormancy and wake up automatically
Output speed change automatically
| Model | -12SF | -14TF |
| AC input voltage(V) | 220~260(1PH) | 380~480(3PH) |
| Max.DC voltage(V) | 440 | 800 |
| Start-up voltage(V) | 180 | 280 |
| Lowest working voltage(V) | 150 | 250 |
| Recommended DC | 200~400 | 300~750 |
| input voltage range(V) |
| Recommended MPP voltage(V) | 330 | 550 |
| Three-Phase 220-260V output |
| Model No. | Rated output power(KW) | Max. DC input current(A) | Rated output current(A) |
|
| CV900S-00BG-12SF2 | 0.75 | 7.5 | 4.5 |
| CV900S-001G-12SF2 | 1.5 | 10 | 7 |
| CV900S-002G-12SF2 | 2.2 | 18 | 10 |
| Three-Phase 380-480V output |
| Model No. | Rated output power(KW) | Rated input current(A) | Rated output current(A) |
|
| CV900S-00BG-14TF1 | 0.75 | 4.5 | 2.5 |
| CV900S-001G-14TF1 | 1.5 | 7.5 | 3.7 |
| CV900S-002G-14TF1 | 2.2 | 10 | 5 |
| CV900S-004G-14TF1 | 4 | 18 | 9 |
| CV900S-005G-14TF1 | 5.5 | 20 | 13 |
| CV900S-007G-14TF1 | 7.5 | 30 | 17 |
| CV900S-011G-14TF1 | 11 | 40 | 25 |
| CV900S-015G-14TF1 | 15 | 50 | 32 |
| CV900S-018G-14TF1 | 18.5 | 60 | 37 |
| CV900S-022G-14TF1 | 22 | 80 | 45 |
| CV900S-030G-14TF1 | 30 | 100 | 60 |
| CV900S-037G-14TF1 | 37 | 119 | 75 |
About Canroon
Canroon is a remarkable energy saving solutions provider,
specialized in frequecy inverter for more than 12 years, whose products and solutions are widely used in
shipbuilding, aviation, automotive, metallurgy, chemical engineering, petroleum pipeline constrution, newmaterials,
new energy and other fields.
Canroon has a professional R&D team, committed to convert its
wisdom into leading products and services to meet the needs of different customers, continuing to create
values for customers.
Basic Running Wiring
The wiring parts of inverter include major loop and control loop.
Open the cover of /0 terminals, users can seethe major loop
terminal and control loop terminal, and must conduct the wiring
according to the followingdiagram.
